Writing your own SimBank test

Now you have run through the tests provided as part of Galasa SimBank, you can have a go at writing your own test. This requires you to use a 3270 terminal emulator to connect with SimBank and perform a menu-driven transfer between two accounts. Why not attempt to follow the instructions without looking at the code? You can use the provided test examples as a reference and for inspiration. Eclipse will help when you need to resolve imports and exceptions.

Don't forget that whenever you create a test, or modify an existing one, you need to right-click the containing project (for example, dev.galasa.simbank.tests) containing the new or modified test and choose Run As > Maven install. This ensures that the correct version of the test is submitted to the test runner.

Create a new Galasa test class

  1. Start Eclipse with the example projects open and launch SimBank.

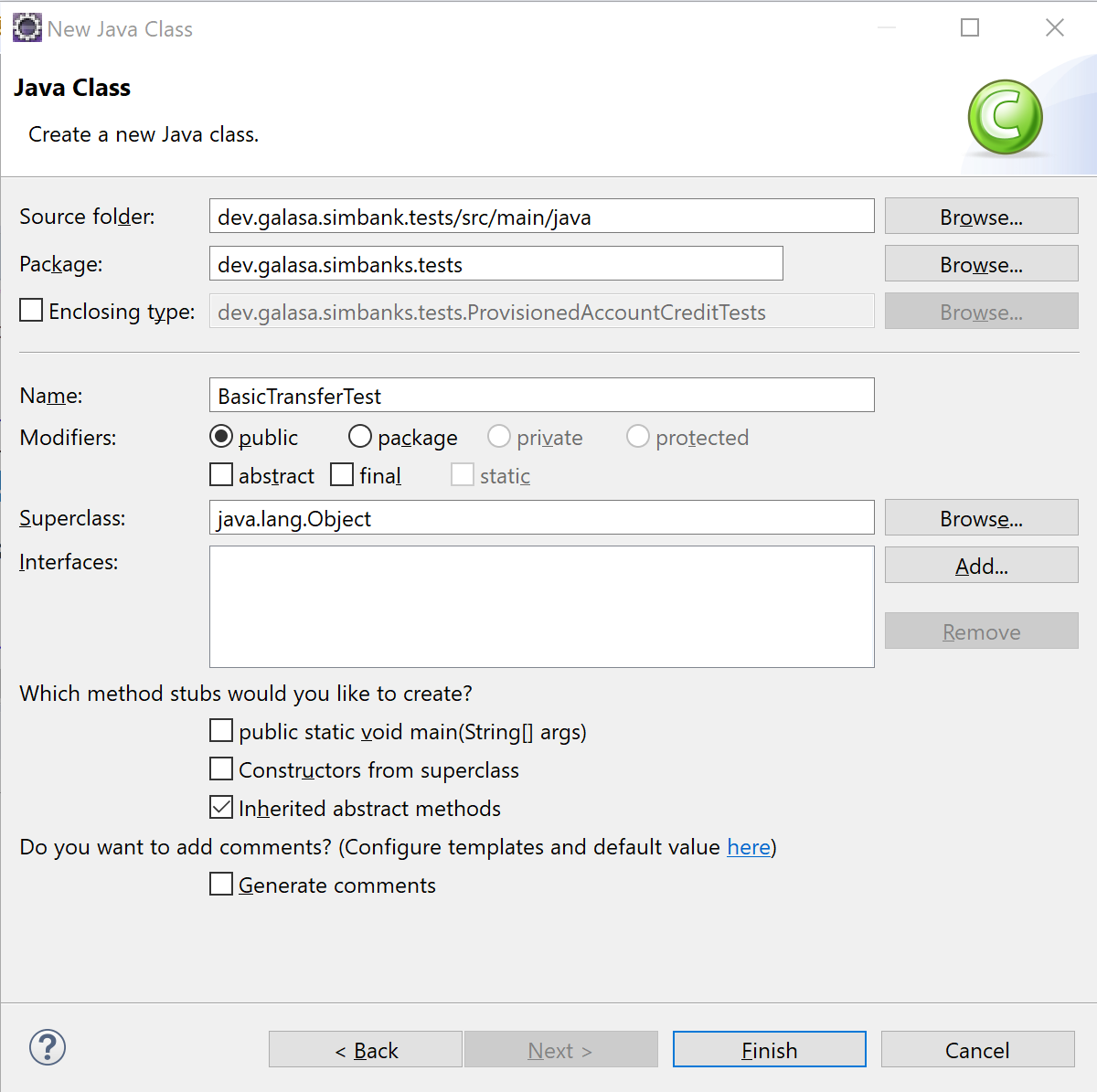

  2. Create a new test class by selecting File > New > Class (or if this option is not present, select File > New > Other, and choose Class in the dialog). Complete the next dialog as follows and then click Finish: New Java Class
  3. Annotate the new class with the @Test annotation. You can click on the error indication for @Test and then double-click on Import '@Test' (dev.galasa) to create the correct import: Fix @Test import You can use a similar technique later on when you need to resolve exceptions in the throws clause of the transferCredit() method.
Stage 1 - code so far
package dev.galasa.simbanks.tests;

import dev.galasa.Test;

@Test
public class BasicTransferTest {

}

Provision the necessary resources and write a not null test.

  1. Just inside your new test class, declare the required Managers and add a not null test. You will need declarations for @ZosImage, @Zos3270Terminal, @ArtifactManager, @HttpClient, @CoreManager, and @Logger. Make sure that @ZosImage and @Zos3270Terminal are assigned the imageTag simbank.
  2. Add a testNotNull() method that asserts that your @Zos3270Terminal, @ArtifactManager and @HttpClient have instantiated correctly.
Stage 2 - code so far
package dev.galasa.simbanks.tests;

import static org.assertj.core.api.Assertions.assertThat;

import org.apache.commons.logging.Log;

import dev.galasa.Test;
import dev.galasa.artifact.ArtifactManager;
import dev.galasa.artifact.IArtifactManager;
import dev.galasa.core.manager.CoreManager;
import dev.galasa.core.manager.ICoreManager;
import dev.galasa.core.manager.Logger;
import dev.galasa.http.HttpClient;
import dev.galasa.http.IHttpClient;
import dev.galasa.zos.IZosImage;
import dev.galasa.zos.ZosImage;
import dev.galasa.zos3270.ITerminal;
import dev.galasa.zos3270.Zos3270Terminal;

@Test
public class BasicTransferTest {
	@ZosImage(imageTag="simbank")
    public IZosImage image;

    @Zos3270Terminal(imageTag="simbank")
    public ITerminal terminal;

    @ArtifactManager
    public IArtifactManager artifacts;

    @HttpClient
    public IHttpClient client;

    @CoreManager
    public ICoreManager coreManager;

    @Logger
    public Log logger;


    @Test
    public void testNotNull() {
        //Check all objects loaded
        assertThat(terminal).isNotNull();
        assertThat(artifacts).isNotNull();
        assertThat(client).isNotNull();
    }
}

You can run the Not Null test by creating a new run configuration as in the other examples (don't forget to ensure that SimBank is running first). See The SimBankIVT test class.

Create the main test method and open the main bank menu

  1. Inside your test class, create a public method called transferCredit(). Annotate it with @Test.
  2. Log on to SimBank using the terminal object, which is an instance of ITerminal. Use the credentials IBMUSER and SYS1.
  3. Use assertThat() to confirm that the session manager has a bank session available.
  4. Open the banking application.
  5. Use assertThat() to confirm that the bank menu is showing.

Refer to the provided tests to see how to use the various terminal methods such as waitForKeyboard, positionCursorToFieldContaining, enter, tab, clear, pf1 and type.

Stage 3 - the main `transferCredit()` method (in progress)
@Test
public void transferCredit() throws TimeoutException, KeyboardLockedException, NetworkException, FieldNotFoundException, TextNotFoundException, InterruptedException {
	//Logon through the session manager
	terminal.waitForKeyboard()
	.positionCursorToFieldContaining("Userid").tab().type("IBMUSER")
	.positionCursorToFieldContaining("Password").tab().type("SYS1")
	.enter().waitForKeyboard();

	//Assert that the session manager has a bank session available
	assertThat(terminal.retrieveScreen()).containsOnlyOnce("SIMPLATFORM MAIN MENU");
	assertThat(terminal.retrieveScreen()).containsOnlyOnce("BANKTEST");

	//Open banking application
	terminal.pf1().waitForKeyboard()
	.clear().waitForKeyboard()
	.tab().type("bank").enter().waitForKeyboard();

	//Assert that the bank menu is showing
	assertThat(terminal.retrieveScreen()).containsOnlyOnce("Options     Description        PFKey ");
	assertThat(terminal.retrieveScreen()).containsOnlyOnce("BROWSE      Browse Accounts    PF1");
	assertThat(terminal.retrieveScreen()).containsOnlyOnce("TRANSF      Transfer Money     PF4");
    }

Retrieve the initial account balances and declare an amount to transfer

  1. Create a private getBalance(<string>) method by copying it from the BasicAccountCreditTest.java example.
  2. Retrieve the initial balances of accounts 123456789 and 987654321 and write them to the log. Use the getBalance(<string>) method you just created.
  3. Declare a final BigDecimal transferAmount variable to store an amount to transfer by instantiating a new BigDecimal object.
Stage 4 - the full `BasicTransferTest` code so far
@Test
public class BasicTransferTest {
	@ZosImage(imageTag="simbank")
    public IZosImage image;

    @Zos3270Terminal(imageTag="simbank")
    public ITerminal terminal;

    @ArtifactManager
    public IArtifactManager artifacts;

    @HttpClient
    public IHttpClient client;

    @CoreManager
    public ICoreManager coreManager;

    @Logger
    public Log logger;


    @Test
    public void testNotNull() {
        //Check all objects loaded
        assertThat(terminal).isNotNull();
        assertThat(artifacts).isNotNull();
        assertThat(client).isNotNull();
    }


    @Test
    public void transferCredit() throws TimeoutException, KeyboardLockedException, NetworkException, FieldNotFoundException, TextNotFoundException, InterruptedException {
    	//Logon through the session manager
    	terminal.waitForKeyboard()
        .positionCursorToFieldContaining("Userid").tab().type("IBMUSER")
        .positionCursorToFieldContaining("Password").tab().type("SYS1")
        .enter().waitForKeyboard();

    	//Assert that the session manager has a bank session available
        assertThat(terminal.retrieveScreen()).containsOnlyOnce("SIMPLATFORM MAIN MENU");
    	assertThat(terminal.retrieveScreen()).containsOnlyOnce("BANKTEST");

        //Open banking application
        terminal.pf1().waitForKeyboard()
        .clear().waitForKeyboard()
        .tab().type("bank").enter().waitForKeyboard();

        //Assert that the bank menu is showing
        assertThat(terminal.retrieveScreen()).containsOnlyOnce("Options     Description        PFKey ");
        assertThat(terminal.retrieveScreen()).containsOnlyOnce("BROWSE      Browse Accounts    PF1");
        assertThat(terminal.retrieveScreen()).containsOnlyOnce("TRANSF      Transfer Money     PF4");

        //Retrieve initial account balances
        BigDecimal account123456789InitialBalance = getBalance("123456789");
        logger.info("Pre-test balance for account 123456789 is " + account123456789InitialBalance.toString());
        BigDecimal account987654321InitialBalance = getBalance("987654321");
        logger.info("Pre-test balance for account 987654321 is " + account987654321InitialBalance.toString());

        //Declare the amount to be transferred
        final BigDecimal transferAmount = new BigDecimal(10.0);
    }

    private BigDecimal getBalance(String accountNum) throws DatastreamException, TimeoutException, KeyboardLockedException, NetworkException, FieldNotFoundException, TextNotFoundException, InterruptedException {
        BigDecimal amount = BigDecimal.ZERO;
        //Open account menu and enter account number
        terminal.pf1().waitForKeyboard()
                .positionCursorToFieldContaining("Account Number").tab()
                .type(accountNum).enter().waitForKeyboard();

        //Retrieve balance from screen
        amount = new BigDecimal(terminal.retrieveFieldTextAfterFieldWithString("Balance").trim());

        //Return to bank menu
        terminal.pf3().waitForKeyboard();
        return amount;
    }

}

Automate Galasa to make the transfer and check that everything is correct.

  1. Choose the TRANSFER MONEY option (PF4) and check that we are on the right screen - it contains the string SIMBANK TRANSFER MENU.
  2. Enter the transfer amount details using the various methods of your terminal instance. Note that you you have to convert the transferAmount to a String before you can use terminal.type to enter it into the screen's fields.
  3. Check that a Transfer Successful message appears.
  4. Go back to the main bank menu (PF3).
  5. Retrieve the final balances and use assertions to check that the account balances have been debited and credited correctly.
The completed test code
package dev.galasa.simbanks.tests;

import static org.assertj.core.api.Assertions.assertThat;

import java.math.BigDecimal;

import org.apache.commons.logging.Log;

import dev.galasa.Test;
import dev.galasa.artifact.ArtifactManager;
import dev.galasa.artifact.IArtifactManager;
import dev.galasa.core.manager.CoreManager;
import dev.galasa.core.manager.ICoreManager;
import dev.galasa.core.manager.Logger;
import dev.galasa.http.HttpClient;
import dev.galasa.http.IHttpClient;
import dev.galasa.zos.IZosImage;
import dev.galasa.zos.ZosImage;
import dev.galasa.zos3270.FieldNotFoundException;
import dev.galasa.zos3270.ITerminal;
import dev.galasa.zos3270.KeyboardLockedException;
import dev.galasa.zos3270.TextNotFoundException;
import dev.galasa.zos3270.TimeoutException;
import dev.galasa.zos3270.Zos3270Terminal;
import dev.galasa.zos3270.spi.DatastreamException;
import dev.galasa.zos3270.spi.NetworkException;

@Test
public class BasicTransferTest {
	@ZosImage(imageTag="simbank")
    public IZosImage image;

    @Zos3270Terminal(imageTag="simbank")
    public ITerminal terminal;

    @ArtifactManager
    public IArtifactManager artifacts;

    @HttpClient
    public IHttpClient client;

    @CoreManager
    public ICoreManager coreManager;

    @Logger
    public Log logger;


    @Test
    public void testNotNull() {
        //Check all objects loaded
        assertThat(terminal).isNotNull();
        assertThat(artifacts).isNotNull();
        assertThat(client).isNotNull();
    }

    @Test
    public void transferCredit() throws TimeoutException, KeyboardLockedException, NetworkException, FieldNotFoundException, TextNotFoundException, InterruptedException {
    	//Logon through the session manager
    	terminal.waitForKeyboard()
        .positionCursorToFieldContaining("Userid").tab().type("IBMUSER")
        .positionCursorToFieldContaining("Password").tab().type("SYS1")
        .enter().waitForKeyboard();

    	//Assert that the session manager has a bank session available
        assertThat(terminal.retrieveScreen()).containsOnlyOnce("SIMPLATFORM MAIN MENU");
    	assertThat(terminal.retrieveScreen()).containsOnlyOnce("BANKTEST");

        //Open banking application
        terminal.pf1().waitForKeyboard()
        .clear().waitForKeyboard()
        .tab().type("bank").enter().waitForKeyboard();

        //Assert that the bank menu is showing
        assertThat(terminal.retrieveScreen()).containsOnlyOnce("Options     Description        PFKey ");
        assertThat(terminal.retrieveScreen()).containsOnlyOnce("BROWSE      Browse Accounts    PF1");
        assertThat(terminal.retrieveScreen()).containsOnlyOnce("TRANSF      Transfer Money     PF4");

        //Retrieve initial account balances
        BigDecimal account123456789InitialBalance = getBalance("123456789");
        logger.info("Pre-test balance for account 123456789 is " + account123456789InitialBalance.toString());
        BigDecimal account987654321InitialBalance = getBalance("987654321");
        logger.info("Pre-test balance for account 987654321 is " + account987654321InitialBalance.toString());

        //Declare the amount to be transferred
        final BigDecimal transferAmount = new BigDecimal(10.0);

        //Choose the Transfer Money option
        terminal.pf4().waitForKeyboard();

        //Assert that we are on the right screen
        assertThat(terminal.retrieveScreen()).containsOnlyOnce("SIMBANK TRANSFER MENU");

        //Enter the transfer amount details
        //Open account menu and enter account numbers and transfer amount
        terminal.positionCursorToFieldContaining("Transfer from Account Number").tab()
                .type("123456789").enter().waitForKeyboard();
        terminal.positionCursorToFieldContaining("Transfer to Account Number").tab()
        		.type("987654321").enter().waitForKeyboard();
        terminal.positionCursorToFieldContaining("Transfer Amount").tab()
				.type(transferAmount.toString()).enter().waitForKeyboard();

        //Assert that the transfer was successful
        assertThat(terminal.retrieveScreen()).containsOnlyOnce("Transfer Successful");

        //Back to main menu - important we do this to prepare for getBalance().
        terminal.pf3().waitForKeyboard();

        //Retrieve final account balances
        BigDecimal account123456789FinalBalance = getBalance("123456789");
        logger.info("Final balance for account 123456789 is " + account123456789FinalBalance.toString());
        BigDecimal account987654321FinalBalance = getBalance("987654321");
        logger.info("Final balance for account 987654321 is " + account987654321FinalBalance.toString());

        //Assert that the final balances differ by exactly the transferred amount
        assertThat(account123456789FinalBalance).isEqualTo(account123456789InitialBalance.subtract(transferAmount));
        assertThat(account987654321FinalBalance).isEqualTo(account987654321InitialBalance.add(transferAmount));
    }

    private BigDecimal getBalance(String accountNum) throws DatastreamException, TimeoutException, KeyboardLockedException, NetworkException, FieldNotFoundException, TextNotFoundException, InterruptedException {
        BigDecimal amount = BigDecimal.ZERO;
        //Open account menu and enter account number
        terminal.pf1().waitForKeyboard()
                .positionCursorToFieldContaining("Account Number").tab()
                .type(accountNum).enter().waitForKeyboard();

        //Retrieve balance from screen
        amount = new BigDecimal(terminal.retrieveFieldTextAfterFieldWithString("Balance").trim());

        //Return to bank menu
        terminal.pf3().waitForKeyboard();
        return amount;
    }

}

If you haven't yet done so, you can run the final test by first ensuring that SimBank is already running and then creating and running a new run configuration as you did with the other examples.

You can view the expected and actual values by double-clicking on the relevant run in the Galasa Results tab (if it is not visible, choose Window > Show View > Other, expand Galasa and choose Galasa Results). If, instead, you see a Framework not initialised message, choose Galasa > Initialise Galasa Framework from the main menu first.

Now create your own test to run against SimBank, or copy and modify one of the tests provided, to get more experience in writing Galasa tests. You could also try rewriting this test to use a provisioning Manager (e.g. IAccount) just as the ProvisionedAccoutCreditTests.java example improved the design of BasicAccountCreditTests.java.
